Profinet Communication between AXC F 2152 PLC's

PLCnext Technology & PLCnext Controls
1

Hi,

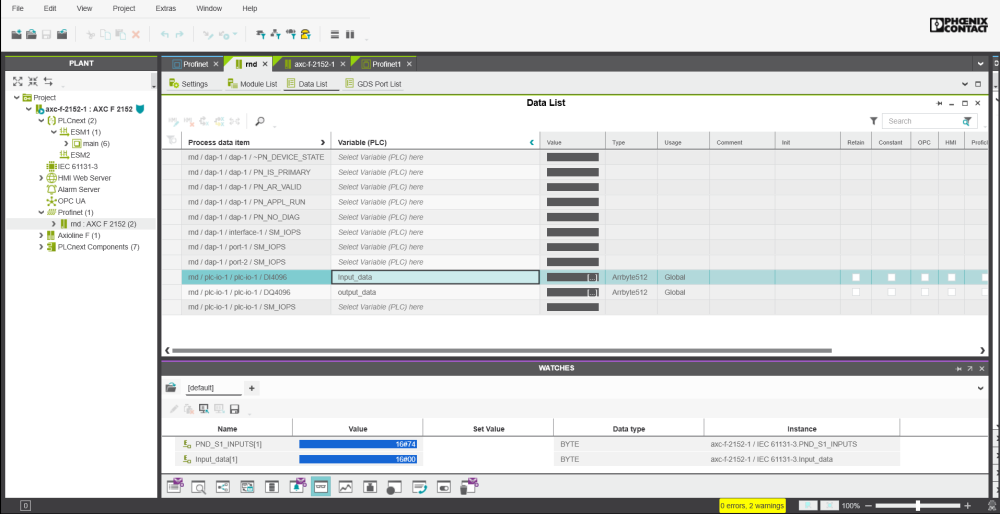

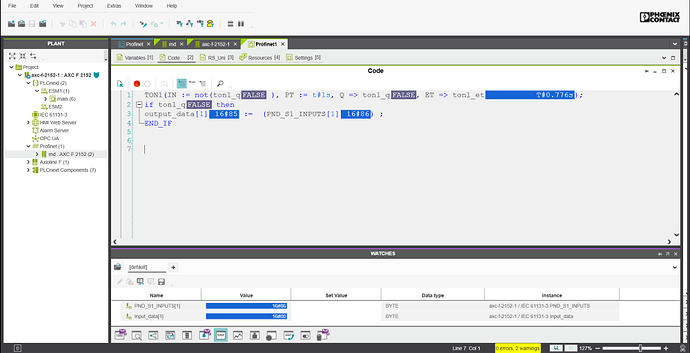

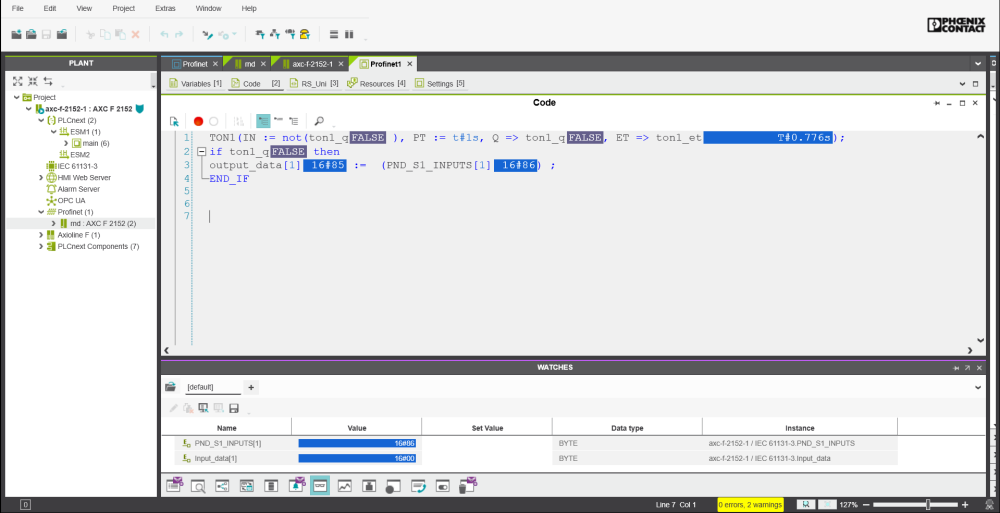

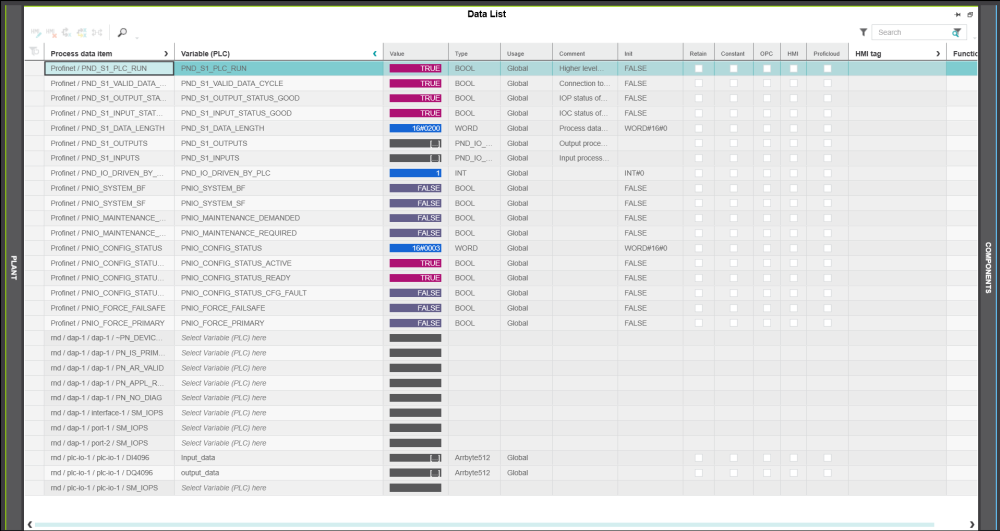

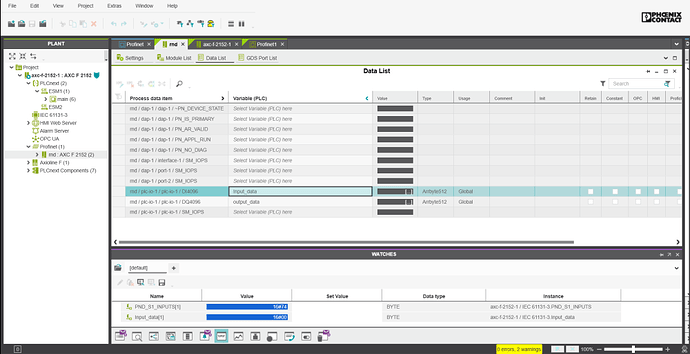

I am trying to communicate in profinet between 2 AXC F 2152 PLC’s. i am able to communicate in profinet. But, the Profinet input data is not updating the connected field Input_data instead it is updating in PND_S1_INPUTS. Please refer the below screenshots.

image.png1000×514 115 KB
image.png1000×513 88.9 KB
image.png1000×531 155 KB
Please check and let me know what i am missing here to update the input data in the connected Input_data field.

2

PNImage5.pngPNImage4.pngPNImage3.pngPNImage2.pngPNDEvice.pngpn-comm.pngPNimage1.pngHello,

one of the PLCs must be integrated as Profinet device into the PLCnext Engineer project of the other PLC.

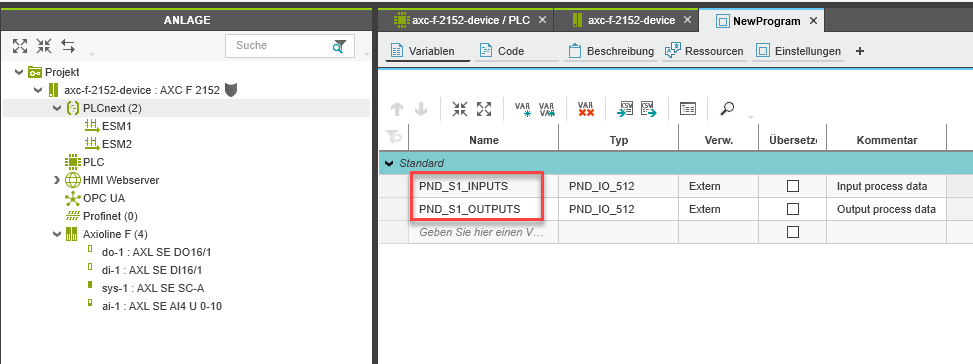

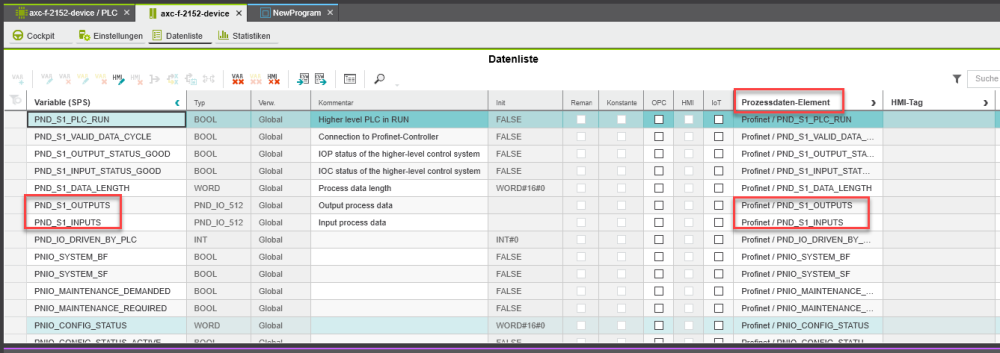

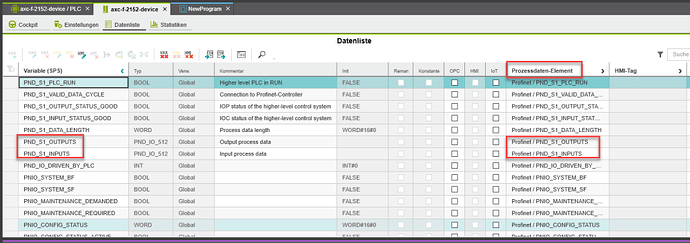

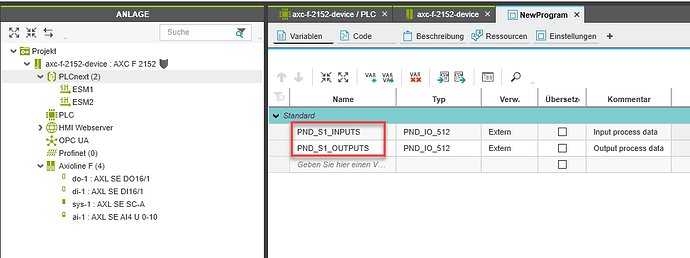

On the “device PLC” you can use the system variables PND_S1_INPUTS and PND_S1_OUTPUTS to exchange data with the “controller PLC”.

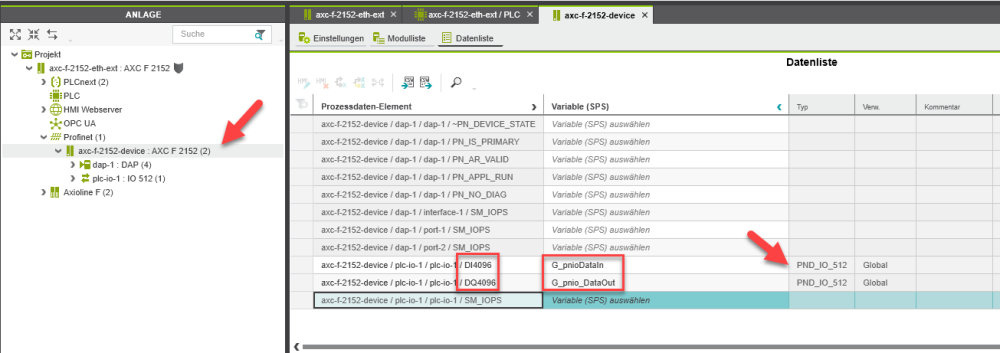

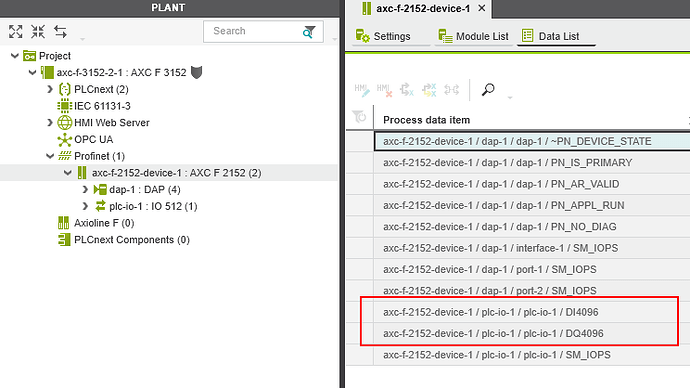

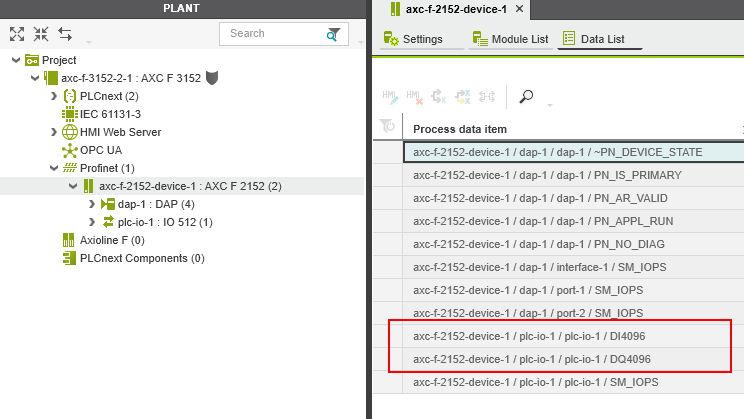

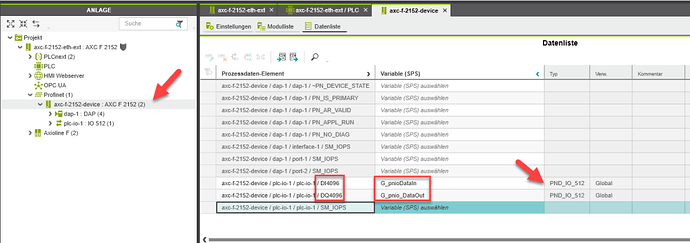

On the “controller PLC” you can use the process data of the “device PLC” DI4096 and DQ4096

You can reach me at vishal.kumar@phoenixcontact.co.in for further queries

PNImage3.png973×364 28.6 KB

PNImage5.png744×419 49.4 KB

pn-comm.png744×419 49.4 KB

PNImage4.png1000×353 107 KB

PNDEvice.png1000×353 128 KB

PNImage2.png1000×353 128 KB

3

Please see the similar Request:
Forum - PLCnext Community (plcnext-community.net)
