Using EIP to write ParaTable PDI Objects

PLCnext Technology & PLCnext Controls
1

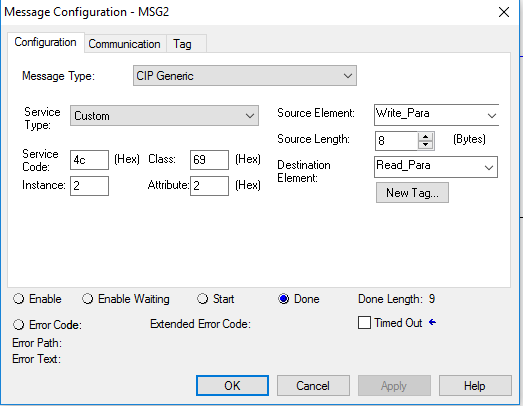

Hello, I am using a Rockwell CompactLogix and I am trying to write IO configuration data using extended access to Axioline F and Smart Elements IO using the ParaTable of the PDI Object. I have a Read and Write explicit message set up in my controller. The write message has the following settings

image.png523×406 18.9 KB

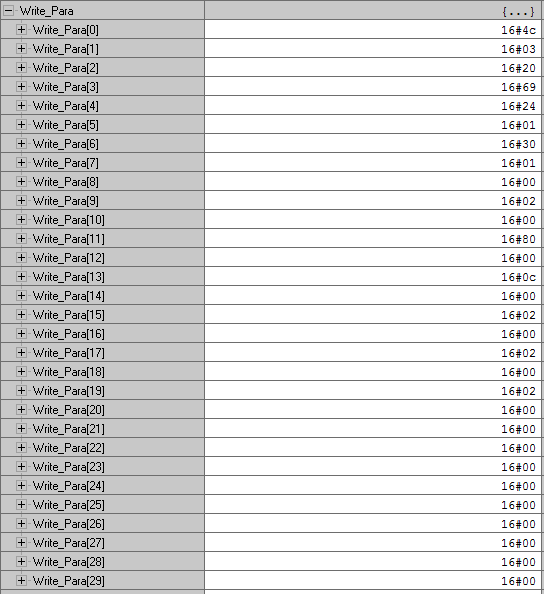

And then I have configured the Write_Para array as follows based on page 47 of the user manual
image.png544×594 30.8 KB
But I am not seeing my modules data configuration change and I feel like I am missing something, since the ParaTable is looking for UINT16 data types to configure the IO. Should I actually be writing the UINT16 data that is specific to the module type? What am I doing wrong? My first go at this so a learning curve for sure.

2

In your comments, you refer to page 47 of the User manual. What User Manual?
What bus coupler are you using?
You might try using the Molex EtherNet/IP tool (useful for sending an Explicit Message) to see what response you are getting back.
